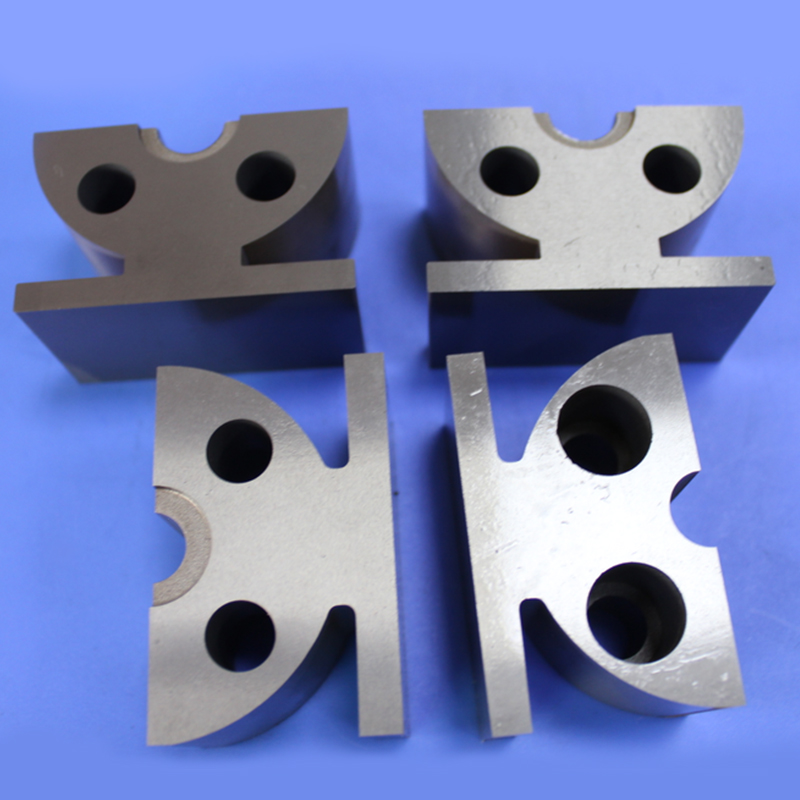

    Carbide Tungsten Steel Cold Heading Dies With High Wear Resistance Small Deformation

    Ask Lasest Price
    Brand Name : Sanxin
    Certification : ISO
    Price : Negotiable
    Delivery Time : 15~45 Days
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10-50000pcs/month
    Model Number : SX2099
    • Product Details
    • Company Profile

    Carbide Tungsten Steel Cold Heading Dies With High Wear Resistance Small Deformation

    Carbide Tungsten Steel Cold Heading Dies With High Wear Resistance Small Deformation


    Introduction:


    The hard alloy (tungsten steel) cold heading die produced by our company adopts scientific treatment method to improve the strength and toughness, and achieve higher fatigue strength and impact resistance. This product is extremely acclaimed by our customers.


    Technical parameters:


    Application and performance of the cemented carbide (tungsten steel) cold heading die

    GradeCo%Hardness HRADensity g/cm³Bending strength Mpa

    Elastic Modulus

    Gpa

    Application
    SX46A1585.543.93000440Mold with high wear resistance and small deformation
    SX50A2085.813.43300390Processing stainless steel and molds with small deformation
    SX60A208413.51900390Straight rod, screw, nut upper mold, etc.
    SX62A2283.713.22900360Countersunk head with large working load
    SX65A2584.112.93100340Straight bar mold with large working load
    SX70A2582.513.12800340Nut lower mold, mold with large working load

    Mold blank dimensional tolerance

    Outer dimeterHeight dimension
    ≤18>18~30>30~50>50~80>80
    ≤φ18+0.3~-0.3+0.35~-0.35+0.4~-0.4
    >φ18~30+0.5~-0.5+0.5~-0.5+0.5~-0.5+0.6~-0.6
    >φ30~50+0.6~-0.6+0.65~-0.65+0.7~-0.7+0.75~-0.75+0.8~-0.8
    >φ50~80+0.8~-0.8+0.85~-0.85+0.9~-0.9+1.0~-1.0

    Inner diameterHeight dimension
    ≤18>18~30>30~50>50~80>80
    Inner diameter limit deviation
    ≤φ50~-0.400~-0.400~-0.400~-0.50
    >φ5~100~-0.500~-0.600~-0.700~-0.75
    >φ10~200~-0.700~-0.750~-0.800~-0.900~-1.0
    >φ20~350~-0.900~-1.000~-1.10~-1.2

    Height dimensionOuter diameter
    ≤φ18≤φ18~30≤φ30~50≤φ50~80
    Height limit deviation
    ≤18+1.5~+0.4+1.5~+0.4+1.6~+0.4
    >18~30+1.7~+0.4+1.8~+0.4+1.9~+0.4+2.0~+0.4
    >30~50+2.1~+0.4+2.3~+0.4+2.5~+0.4+2.5~+0.4
    >50~80+2.9~+0.4+3.0~+0.4+3.1~+0.6
    >80+4.0%~+0.6

    Advantage:


    Our company is specialized in the production of cemented carbide raw material from grades formulation to the production of blanks and deep processing of cemented carbide, our cold heading mold has the following advantages:

    • Different materials are required for different grades materials, which materials are selected by professional material engineer according to the customer's application requirements.
    • Pressed and sintered by professional equipment and unique process, the metallographic structure of the blank product is compact, the dimension is accurate and precise, which can effectively improve processing efficiency.
    • The unique treatment method makes it has higher strength and toughness than general alloy. The properties, like higher fatigue strength, impact resistance and high-strength wear resistance, make it longer service life. Thus, it has a good reputation icn the cold die industry.
