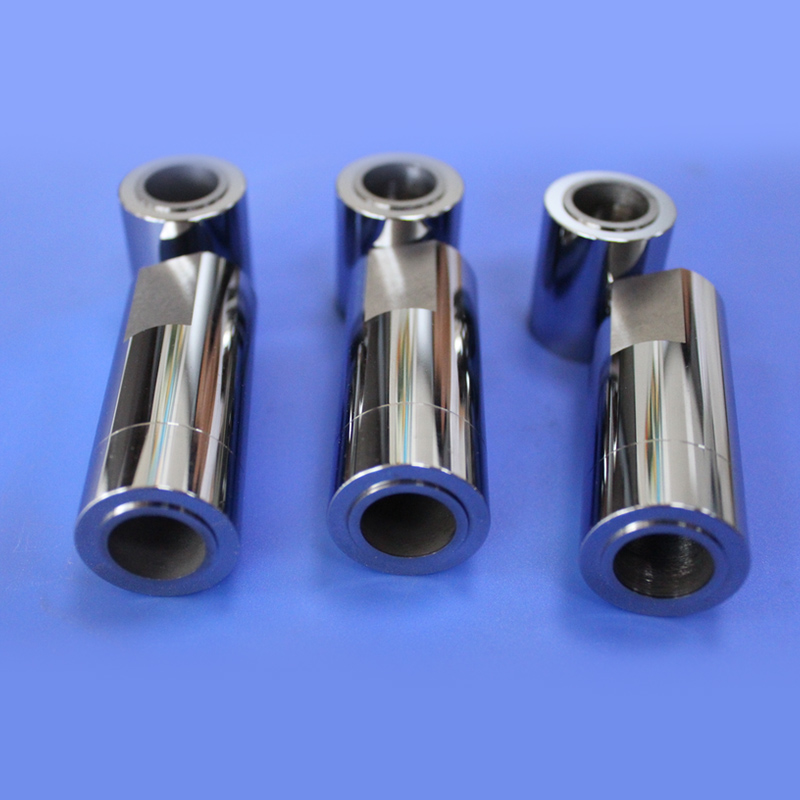

    Progressive Punching Die Carbide Mold Core According To Drawings Or Samples

    Ask Lasest Price
    Brand Name : Sanxin
    Certification : ISO
    Price : Negotiable
    Delivery Time : 15~45 Days
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10-50000pcs/month
    Model Number : SX1376
    • Product Details
    • Company Profile

    Progressive Punching Die Carbide Mold Core According To Drawings Or Samples

    Progressive Punching Die Carbide Mold Core According To Drawings Or Samples

    Supporting new energy manufacturing companies and providing high-precision tungsten carbide mold upper and lower mold cores.
    As the core part of production equipment, tungsten steel mold core is mainly determined by its good physical properties.

    Tungsten carbide material has good and stable physical properties. It widely used with its wear resistance, corrosion resistance, high hardness and high strength. It is the core working component in some special and extreme environments, such as new energy power batteries.

    Oil and gas, underground drilling, automobiles and ships, steel mines and other large-scale industrial production.


    We provide high-quality hard alloy (tungsten steel) progressive punching die, can be processed according to drawings or samples.

    The cemented carbide (tungsten steel) progressive die produced by our company is highly recognized by the customers for its excellent performance, high quality and affordable price.

    The unique production process effectively controls the internal stress of the large-size mold material and avoids the cracking of the cutting process.

    The unique alloy material enhances the corrosion resistance of the alloy during electrical processing and improves the performance and service life of the mold.


    Technical parameters:

    Application and performance of the cemented carbide (tungsten steel) graded blanking die material

    GradeCo%Hardness HRADensity g/cm³Bending strength Mpa

    Elastic Modulus

    Gpa

    Applicable punching materials
    SX101091.714.44300490A sheet of copper, aluminum or the like having a thickness of less than 0.2 mm.
    SX151292.514.14500460Sheets of copper, aluminum and stainless steel.
    SX201390.614.14100460Sheets of copper, aluminum and so on. Highly versatility.
    SX35A1289.814.23400470Cold rolled sheet such as Q195 and SPCC
    SX361589.413.83900430EI film, SPCC board, etc.
    SX40A1288.914.23300470Cold rolled sheet such as Q195 and SPCC
    SX45A1587.913.93200440Silicon steel sheet, cold rolled sheet, etc.
    SX552086.413.53100390Silicon steel sheet, upper and lower punch

    Advantages:

    • The professional material engineer selects the material grade and superfine particle raw powder according to your requirements.
    • Advanced precision processing equipment + unique process.
    • high wear resistance, long service life, greatly reducing the frequency of edge grinding and maintenance.
    1Outstanding Wear Resistance:Tungsten carbide, as the internal embedded material, possesses remarkable hardness and wear resistance, capable of withstanding friction and impact from high-speed pump operation.
    2Superior Corrosion Resistance:The embedded structure effectively isolates the external medium from corroding the steel, prolonging the product's service life and making it suitable for different liquid environments.
    3Excellent Sealing Performance:The design of the dynamic and static ring components ensures reliable sealing during pump operation, reducing the risk of leaks.
    4Suitable for High-Pressure Environments:Tungsten steel inserts can withstand high-pressure working conditions in water pumps, ensuring the stability of the system.
