    Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

    Ask Lasest Price
    Brand Name : Sanxin
    Model Number : SX0026-8
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000pcs/month
    Delivery Time : 15~45 Days
    • Product Details
    • Company Profile

    Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

    Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

    Spherical Carbide Buttons: Precision Tools for Superior Performance
    Introducing our high-quality carbide spherical buttons, meticulously crafted to elevate drilling and excavation operations to new levels of efficiency and effectiveness.
    These precision-engineered tools are designed to withstand the toughest conditions while delivering exceptional performance in various applications.

    Cemented carbide is a kind of composite material which is made of refractory metal hard compounds (WC, TiC, etc.) and bonding metals (CO, Ni, Fe, etc.) by powder metallurgy. Cemented carbide has high hardness, high wear resistance, high strength, high modulus of elasticity, low coefficient of thermal expansion, high red hardness and stable chemical properties.

    Standard Specifications:

    Dimensions(mm)Density
    (g/cm3)
    Hardness
    (HRA)
    TRS(Mpa)
    DiameterHeight
    202514.5087.502400
    223514.5086.002480
    24.83314.5086.502600
    2535
    26.538

    Tungsten Carbide Buttons can be customized according to your drawing to match your drilling tools, too.

    It has complex application environment, engaged in underground coal mining with unclear geological components, and high-power equipment such as propulsion force and shear force, which requires the tungsten carbide buttons to have good impact resistance, heat resistance and wear resistance.

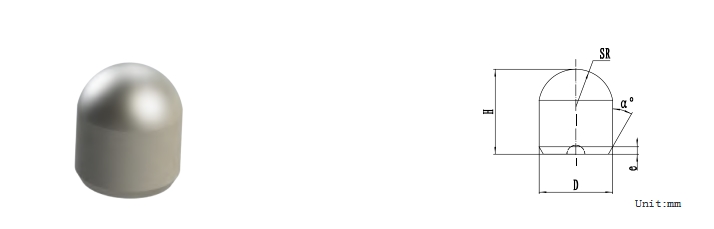

    Spherical buttons for tri-cone drill bits

    TypeDimension
    DHSRe
    ZQ11.5*12.5KP11.2512.56.0182.0
    ZQ13*13.5KP13.2513.56.7182.5
    ZQ14*14.5KP14.514.57.2182.5

    Spherical buttons for high pressure DTH drilling

    Spherical buttons for high pressure DTH drilling
    TypeDimension
    DHSR
    ZQ14*20K(P)14.2207.21827
    ZQ16*22K(P)16.252291827
    ZQ18*25K18.35259.21830

    Spherical buttons for shield machine hob


    Spherical buttons for shield machine hob
    TypeDimension
    DHSR
    ZQ16*23KP16.25239181.8
    ZQ16*21KP16.25219181.8

    Applications:

    Polyconical, Parabolic and Mushroom Tungsten carbide buttons, are the general buttons shapes for coal mining series.

    Suitable for welding coal mining, coal mining machine in mid-soft rock formation, tunnel excavation in hard rock formation, drilling on extra hard rock formation or tunnel excavation in complicated rock formation.
